ASTM PS79-96 Snap Button Motorized Push and Pull Tester With Tension Meter
4

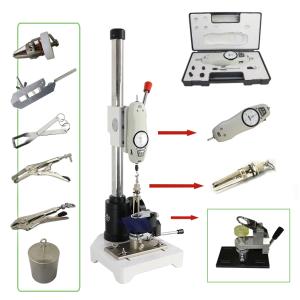

The button snap pull tester. To determine the holding or breaking strength of prong-ring attached snap
fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge
mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed
to the lower Fabric Clamp. By turning the Top Flywheel, the operator can apply a specific force and the
holding force or the breaking strength can be recorded.
Used for measuring the responsibility of garment manufacturer to ensure
button and firmware can be fixed on the ready-made garments properly,
Avoiding button drop from garment to brought danger to baby swallow.
Used for testing the vertical orientation tension of button and added touch.
Main Feature:
* This button pull tester owns a simple structure to result in a low failure rate: The main parts comprise a force gauge, a stand, a pair of grips. * The handwheel is designed with ergonomic principles to make the operator more comfortable. The operator can raise the upper grip by rotating the handwheel, which is convenient for changing the sample and easily applying force to the sample during the test.
* Configured with a precision force gauge or digital gauge to guarantee accurate test results and the repeatability of the test.
* The machine adopts modular design: The control rod, force gauge, and grips can be installed and removed freely to facilitate replacement of the grips, transportation.
* It is a versatile instrument: The upper grips are interchangeable and a lot of grips are configured with the machine, including upper long nose vise grip, three-pronged grip, Upper grasp button grip, Upper Universal grip, Upper stud clamp, etc.
* The device has diverse applications: a wide range of upper grips are configured to suit different testing requirements. Not only can it be used for the button snap pull test, but it is also applied to the compression test and the tensile test for small test samples with the help of special fixtures.
* The machine has easy operation and long life service: The design strictly complies withinternational standards, and the top-level materials and excellent craftsmanship are used in thisbutton snap pull tester.
